Tripod Kits


click to enlarge

click to enlarge

$115 – Includes *free Priority shipping

Kit comes with the tripod head assembly, pulley (480-pound capacity),  galvanized chain (1,300-pound rating) for lifting, plus all hardware and detailed instructions with photos to build a sturdy 12′ tripod for raising and lowering the WaterBoy well bucket. For  single and double pulley hanging systems. The tripod head easily folds with legs for storage  or transported, so can be used for a host of other chores around the home or farm.  WaterBoy tripod ships within 2 business days. 10′ minimum or longer legs not included.

A stabilizer can be added for heavy use, but is not needed with well buckets.

  • The pre-assembled tripod head is made of square steel tubing, 5/16 bolts and 1/4″ chain. The head is made to slide over 1 1/2″ O.D. schedule 40 square tubing or 1 1/2″ O.D. rigid pipe (that you purchase locally) for the tripod legs.
  • Hardware includes rope pulley, quick links, bolts and nuts (all zinc-coated steel).
  • Tripod has numerous other uses. Leg extensions can be added for height.
  • One person can assemble the tripod and erect it in place.  The only tools required are a drill, ladder and hand wrenches.

*Free shipping only within contiguous United States. Please contact us if shipping to Alaska, Hawaii or Internationally or to upgrade shipping class. Please allow 7 days for delivery.

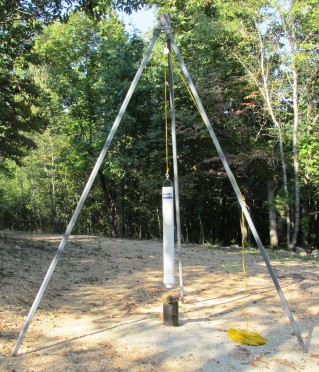

WaterBoy bucket and tripod

Tripod Drawing
